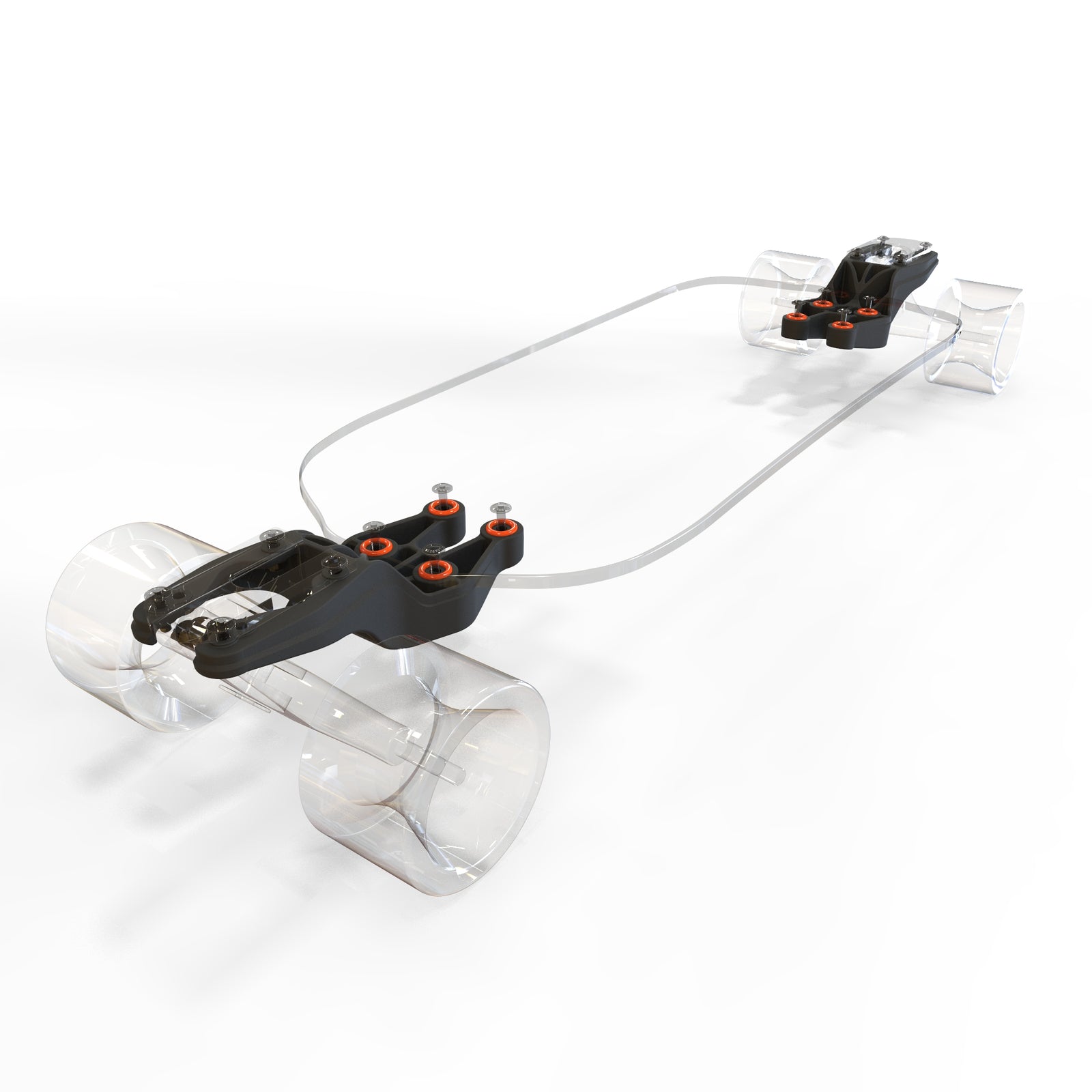

Loaded Zee Bracket truck mounting system rendering

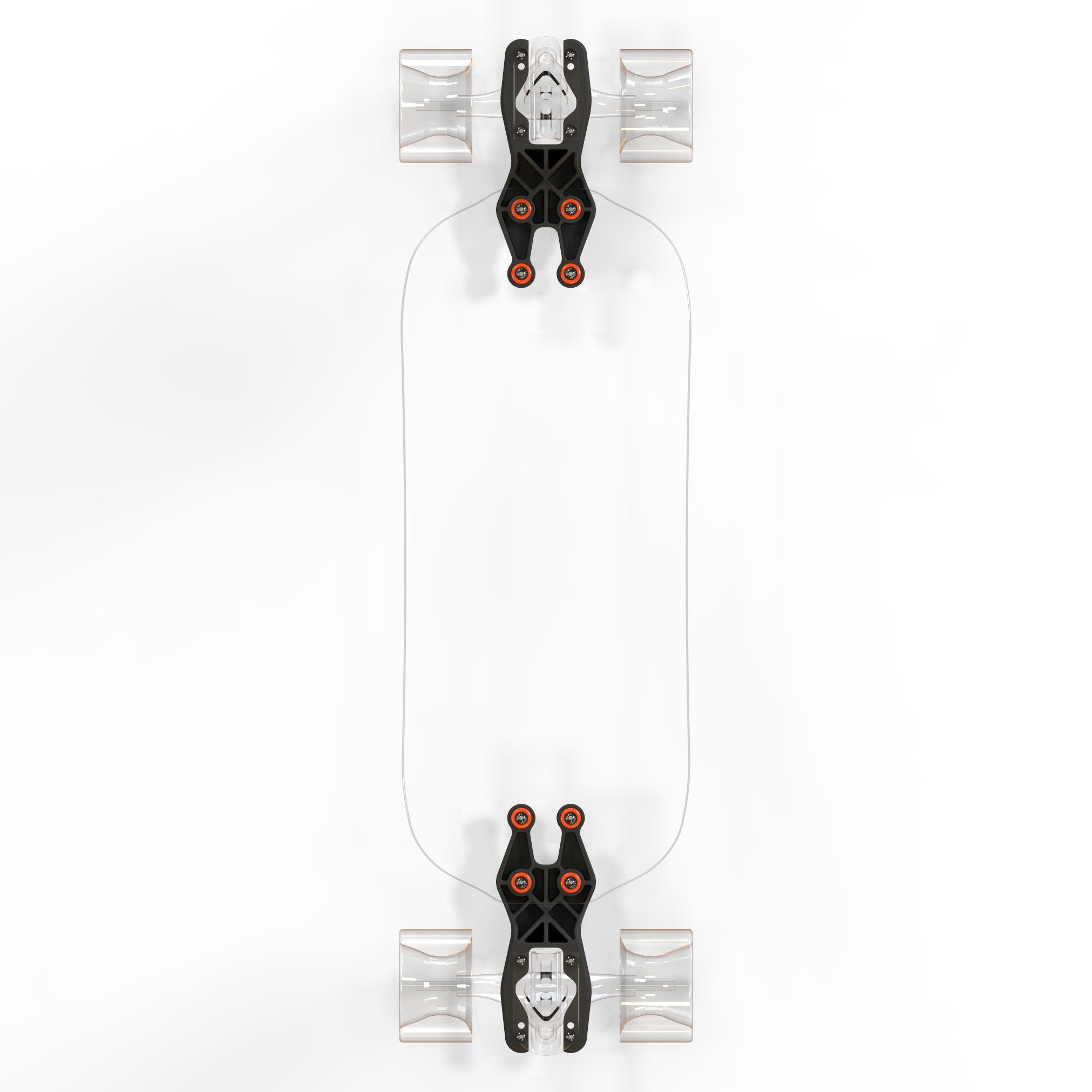

Loaded Zee Bracket truck mounting system rendering
Click to open expanded view

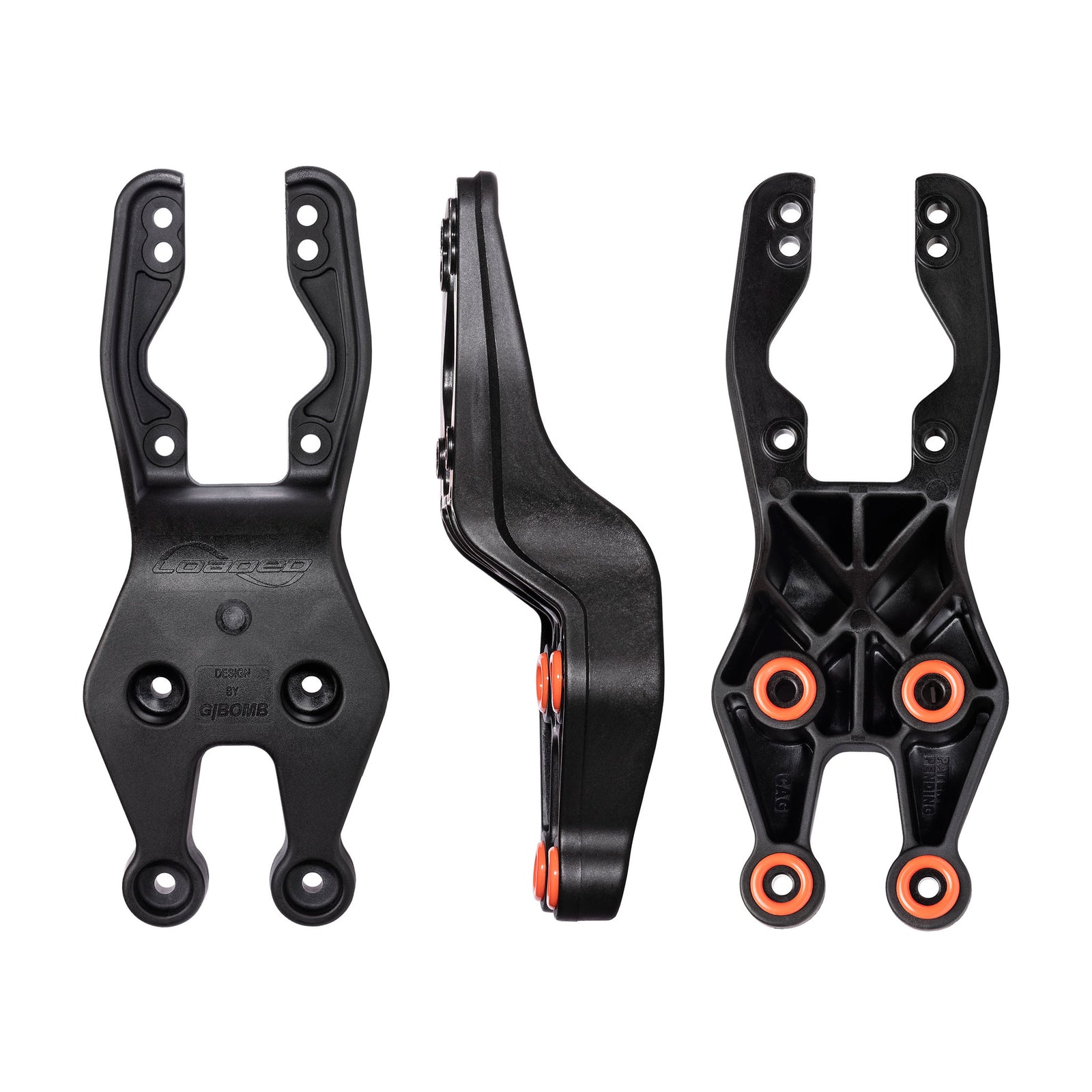

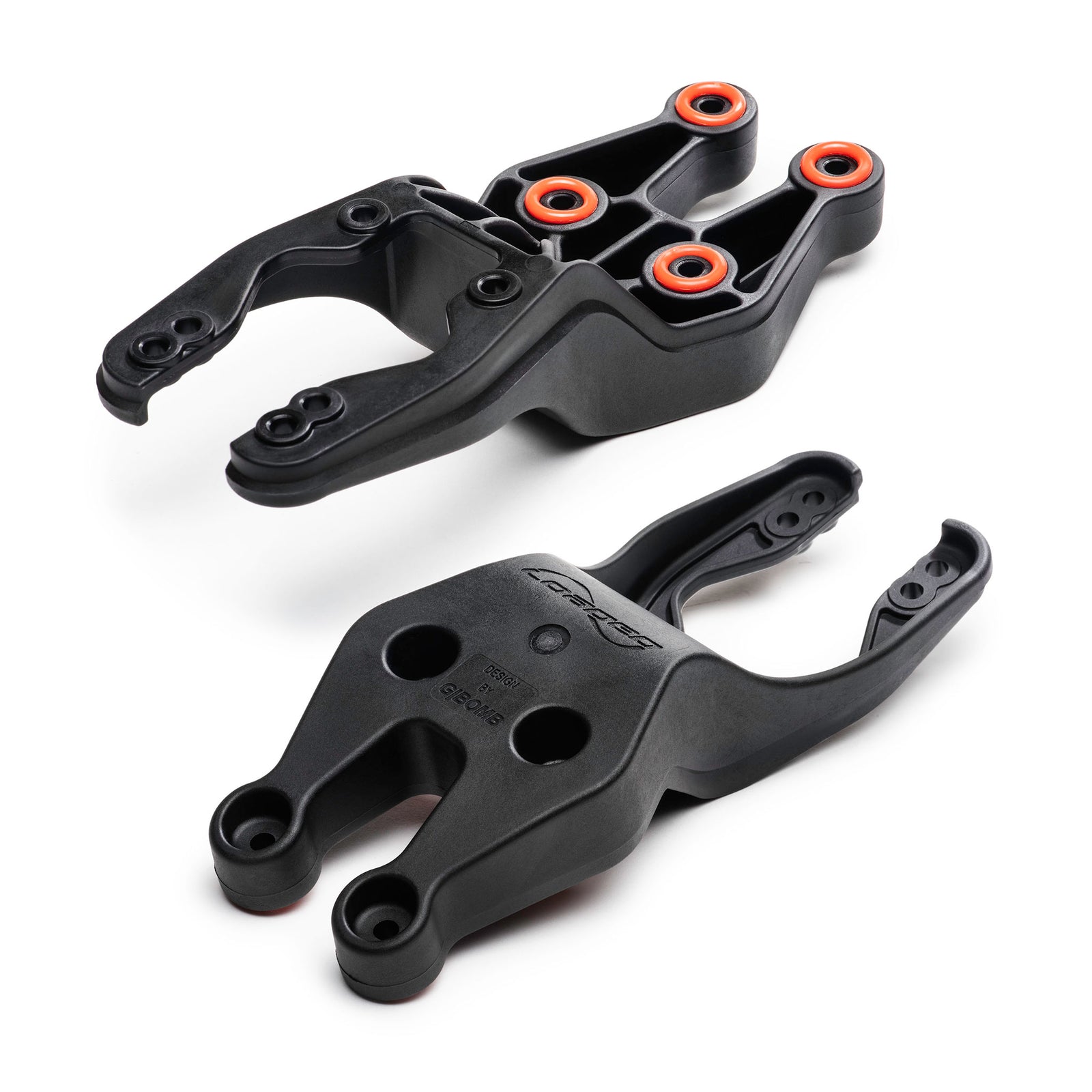

Zee Bracket

MAKE YOUR OWN MAGIC CARPET.

Price
$58

Lifetime Warranty

Hassle-Free Returns

Responsibly Made

In stock and ready for shipping
Description

Create your own low-riding skateboard longboard for next-level urban adventures.

Designed exclusively for Loaded by our friends, the wizards at G/Bomb Skateboards, the Zee Brackets are a game-changing innovation that allows us to create a new generation of low-riding performance vehicles and allows you to create your low-riding masterpiece.

Share your DIY Zee Bracket creations with the hashtag #LoadedZeeBracket!

Specifications
Length 8.25″ / 21.0 cm
Width 3.25″ / 8.26 cm
Height 2.25″ / 5.72 cm
Weight (pair) 0.875 lb / 0.4 kg
Length added to deck wheelbase 9.25″ / 23.5 cm
Use Recommendations Designed for riders up to 250 lb / 113 kg under normal use. Riders 250-300 lb / 113-136 kg should minimize aggressive pumping.
What's included?

Two (2) Zee Brackets, eight (8) O-rings.

Features
  • Lowers ride height by about 1.5″ / 3.8 cm compared to a top mounted skateboard
  • Big Wheels: accommodates wheels between 75 and 105 mm with no wheelbite
  • Super Stiff: made from fiber-reinforced automotive-grade resin
  • Vibration Damping: Eight urethane O-ring vibration dampers (four per bracket)
  • Trucks: Works with a variety of trucks between 150 and 180 mm. Reverse Kingpin (like Paris, Bear, Caliber) recommended. Works with standard street decks using existing truck mounting holes. IMPORTANT - Install trucks on Zee Bracket in drop-through position.
Recommended equipment
  • Big Wheels (75-105mm)
  • Reverse Kingpin Trucks (150-180mm)
  • Bearings
  • Skate Hardware (two sets)
  • Griptape
  • Deck: Create your own deck out of an old street deck, a longboard deck, an old snowboard, a plank of wood, your mom’s priceless coffee table, etc.
Loaded Zee Bracket truck mounting system

Zee Bracket

$58

DIY double-drop

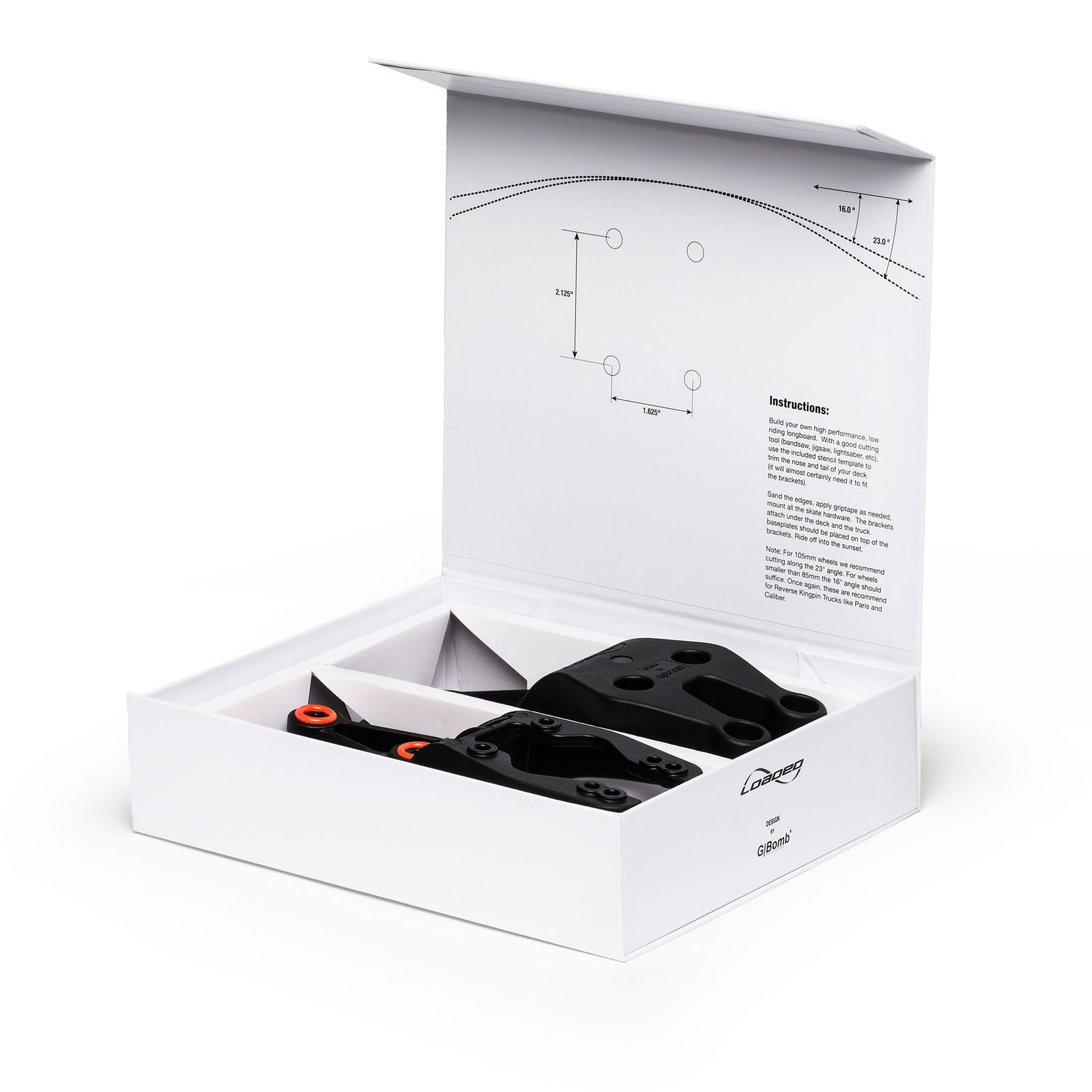

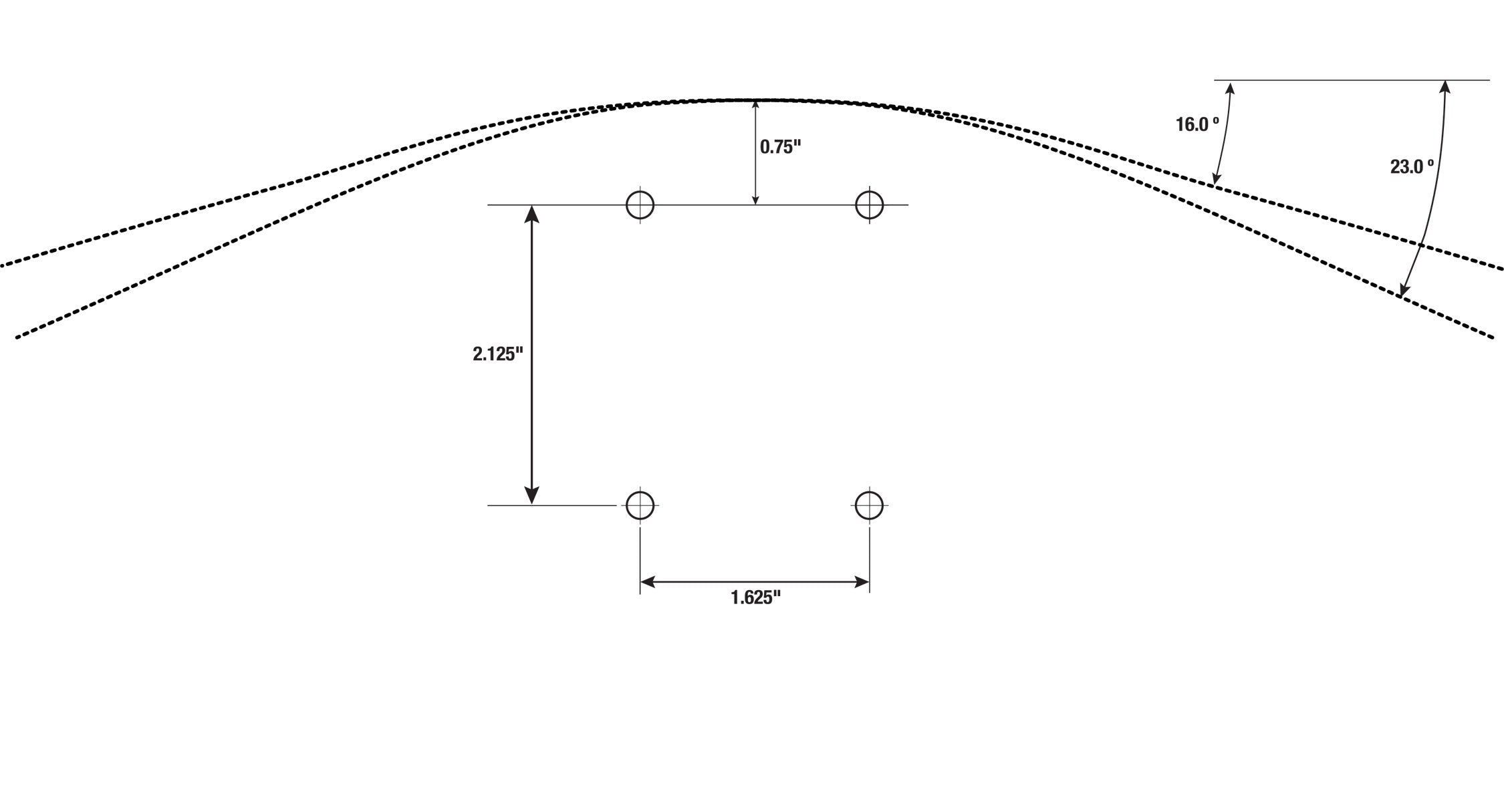

If you're mounting the Zee Bracket on your own deck, you might need to do some chopping. Luckily, we include a handy template on the lid of the box to help you get just the right fit. You can download the PDF here, as well (print at 100% scale).

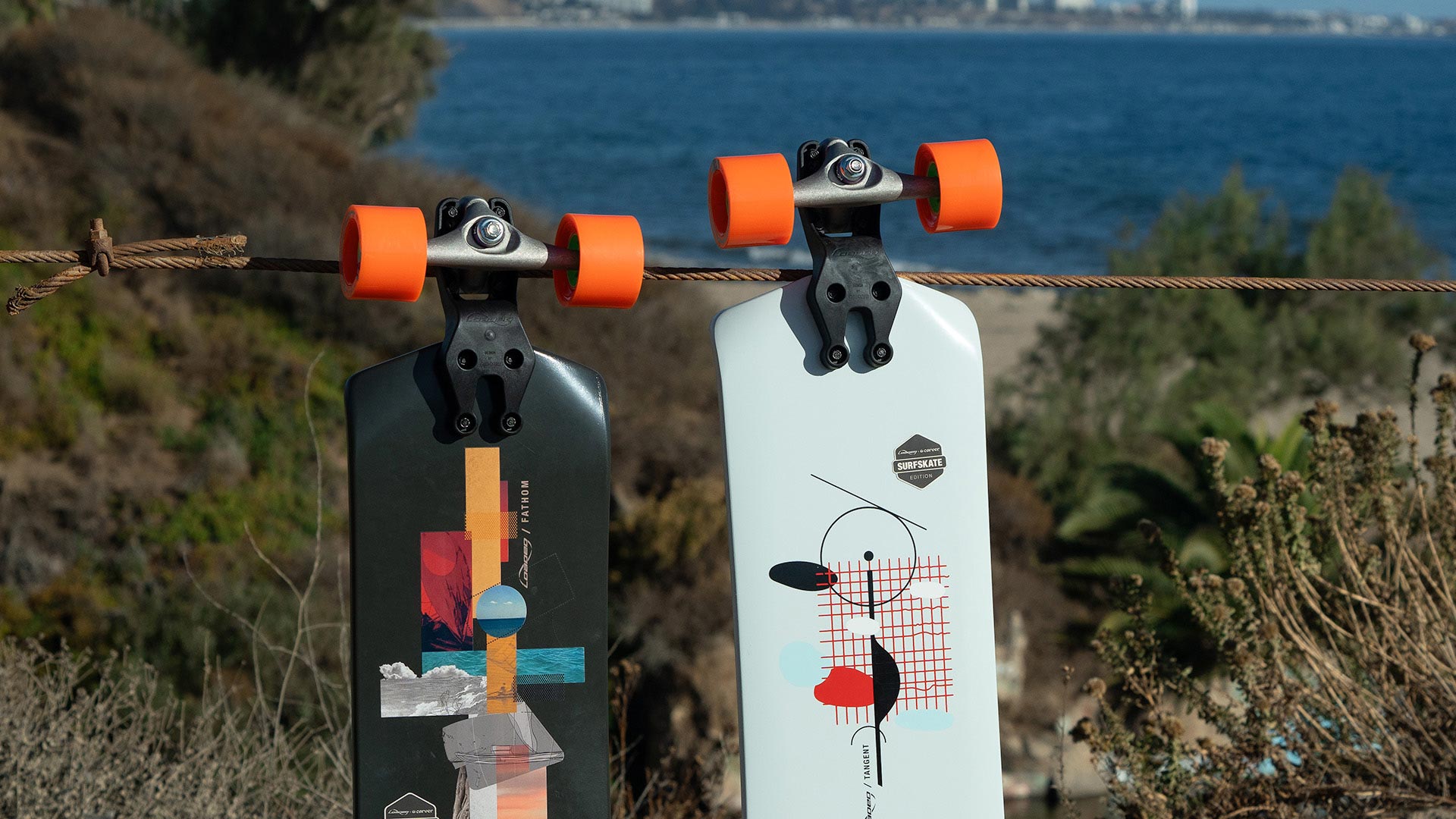

The heart of the Loaded Fathom & Tangent

The Zee Bracket is here to bring all your custom double-drop longboard visions to life. For a curated Loaded experience, check out our family of bracket boards.

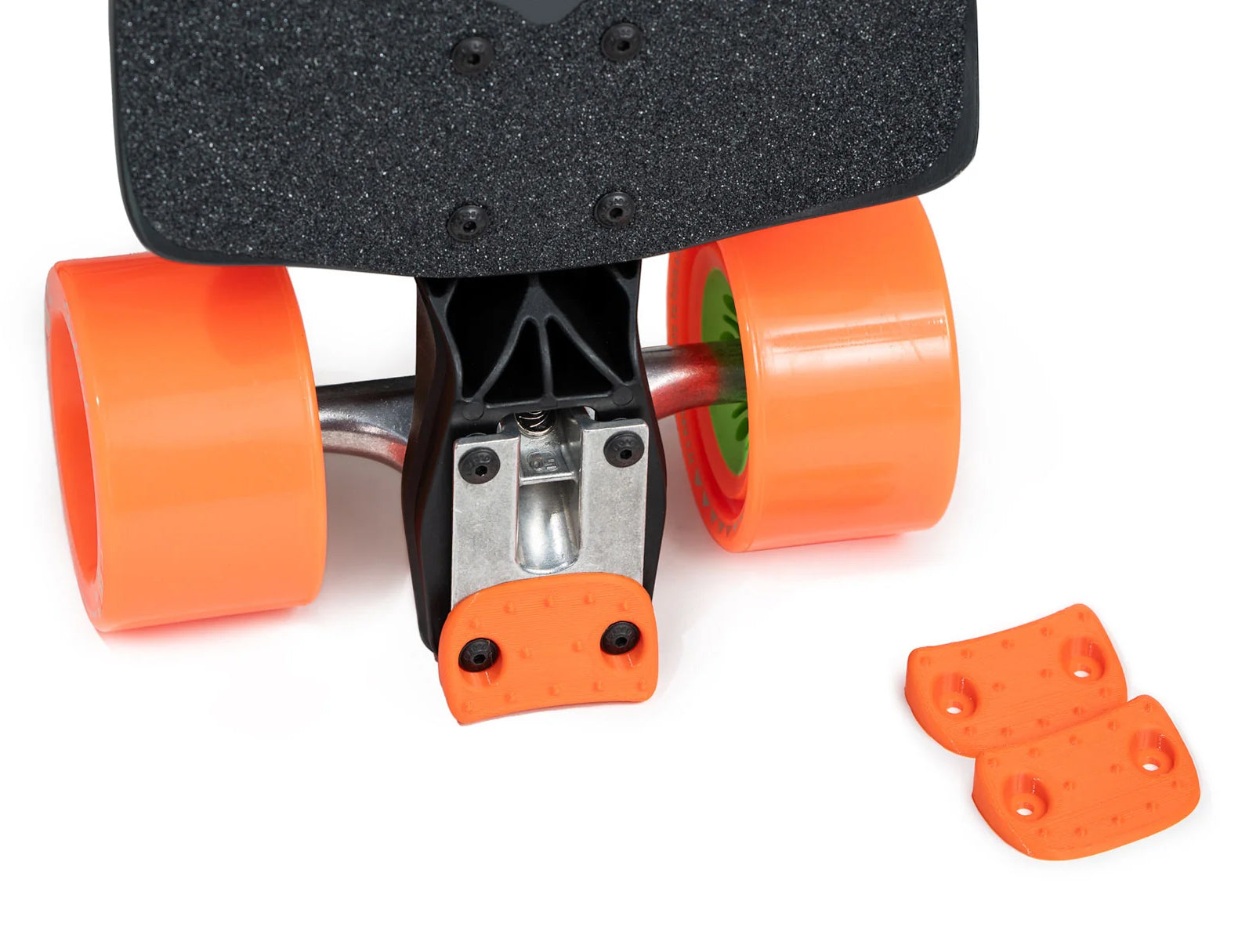

Print your own tail nub

We designed an optional free 3D-printable nub that can be attached to the rear truck, allowing you to pop your board up. It can also allow you to balance your board vertically on end (depending on wheel choice).

The STL file is in millimeters. Print at 100% size. The centers of the holes should be 1.625″ or 41.275mm apart. We recommend a 100% infill for maximum strength.

Download STL file here.

Overall rating: 4.9 / 5 from 30 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

"Exactly as described very happy highly recommended seller"

— Guy (5/5)

"They look even better than expected ans came with bonus stickers. Extremely happy highly recommended seller"

— Guy (5/5)

Really fun time!

"Really fun and easy to create your own low rider! I bought specifically for airline travel so a board would fit into a suitcase without zee brackets attached."

— Mike P. (5/5)

Love the bracket System!

"I've had the brackets on my Tangent since last summer and couldn't be happier. I recently had to replace one after my board got run over by a car, but with the replacement mounted it keeps rolling!"

— Jan E. (5/5)

Frankenstein boosted

"I love this set up. Was super fun to bring the boosted board back to life."

— Corey W. (5/5)

"This part is very easy to install, and it’s the key to the best drop through boards."

— Karl (5/5)

"This part breaks very easy if you ghost your board into a curb. . oops. It’s nice that it’s only about $25 per bracket. It was fairly easy to install and tested good. Everything arrived in awesome packaging to store my extra bracket, and thank you for the stickers!!"

— Karl (5/5)

So fun to build your own carpet

"So much fun. Would recommend to anyone. Ended up putting the dad bods on this set uo and it’s a missle. Point and shoot. Over grass down curbs. The dervish revamp was a must."

— Skyler K. (5/5)

Love them

"Big fan of these - Have made a couple of different platforms and have really enjoyed experimenting with the brackets"

— kesroberts (5/5)

just a token of appreciation

"Guys, I've been riding your boards since 2013, never ever had any issues. Love the attention to details, love the riding experience, love the materials, love the artworks, love the way you're building the brand. This was the only time I had a problem. The bracket broke because it was not installed correctly - clearly that's on me. The fact you replaced it at no cost, shipped it to freaking Estonia and put some stickers in the box just shows the attitude. I think I'll stay loyal to the brand for another 30-40 years depending on how many times I fall on my head. Big love!"

— Arseny S. (5/5)

Q&A

Looked but didn’t find… Is there a max weight recommendation??
Designed for 250 lb, (113 kg) during normal use which includes some pumping. Riders 250-300 lb (136 kg) should minimize pumping to avoid stress.
You mention that RKP trucks are recommended. Would TKP still work with these brackets? I'm running ~149mm trucks with 86mm wheels
TKP will fit with the Zee Bracket, but we don't recommend them. Typically riders will have a split RKP front and TKP back (or a lower angle RKP), to improve pumping. However these brackets are designed for pushing rather than pumping and a more robust bracket is available from GBomb for that purpose. Feel free to contact us at dontwalk@loadedboards.com if any other questions!
Is any deck modification need to use this with a 8" street deck? Any suggestions on truck and wheel setup? Thanks
Check out the Zee bracket product page for a template to modify your current deck. If you're turning this into a double-drop cruiser, we would suggest 150-180mm RKP trucks, and wheels 75mm or larger to allow good ground clearance. Contact us at dontwalkwalk@loadedboards.com for help with a specific set-up.
Hey like the brackets would they work for LDP and what is the wait limit ?
Yes absolutely the Zee brackets are designed as a low cost entry into long distance pushing. With the double drop design providing a low deck height and the ability to mix up baseplate angles, truck types and wheel sizes easily. Designed for 250 lb, (113 kg) during normal use which includes some pumping. Riders 250-300 lb (136 kg) should minimize pumping to avoid stress.
How many mm or inch does the bracket drop, like how many mm or inches it could lower my deck
The zee Bracket would drop your deck 38mm or 1.5", but note that use of the bracket may require you to modify your deck. See the DIY Double-Drop above. Contact us at dontwalk@loadedboards.com if you need assistance for your set-up.
